Home > Classical Single Color LED Strip > Flexible LED Strip Light with 16.4’ 24W 300 Diodes 3528

Flexible LED Strip Light with 16.4’ 24W 300 Diodes 3528

Specification

Description

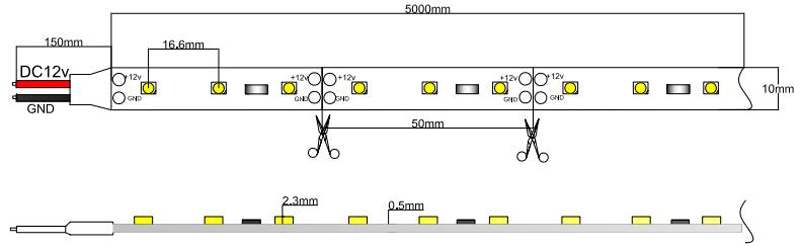

Flexible LED Strip Light with 16.4’ 24W 300 Diodes 3528 – This versatile LED Strip light is in 4.8W/M (1.6 Watts foot). It uses a 3528 LED Chip placed every 0.66”(16.6mm). This LED Strip has low Density Lighting with 60 didoes per meter or (18/ft). It is cuttable every 3 LED chips or 2”(50mm) for 12VDC and every 6 LED chips or 4”(100mm) for 24VDC. The pcb width of this led strip light is 8mm. It has a strong 3M adhesive tape backing on IP20 and IP65 strips that allows it to peal and stick to most surfaces. LED Strips will only achieve their maximum Lifetime installed in an Aluminum Profile to dissipate heat, protect them from elements, and create desirable lighting effects.

Specification

Product nameFlexible LED Strip Light with 16.4’ 24W 300 Diodes 3528
Part numberDR-3528FX60-12V
Power(W)4.8W/M
Input voltageDC12V/24V
Led quantity60pcs/M
CRI(Ra)Ra80, Ra90, Ra95
CCT(K)2200K/2700K/3000k/4000K/5000k/6000K
Luminous flux7-8lm per led
Beam angle120°
LED chipSMD3528
PCB width8mm
Working hours50000 hours
Length5000mm (16.4ft) per roll
Standard connectorcable or DC connector on the end
Waterproof ratingsIP20/IP65/IP67/IP68
Tape3M 300LSE tape on the back for IP20 & IP65 led strip
Accessories10pcs clips & 2pcs end caps per roll for IP67 & IP68 led strip
CertificationCE, ROHS, cUL, UL listed
Warranty3 years

Why choose DeRun LED Strip Light

1.PCB board: DeRun use at least 2 ounces pcb board, some are 3 ounces and 4 ounces for better dissipation. They are 100% pure copper. Our PCB board are CE, ROHS, UL listed.
2.LED Chip: DeRun mostly use Epistar brand led chips. We can do other brand chips according to customer’s request, for example, Cree, Samsung, Philips, San’an, Honglitronic and Smalite led chips. All of these led chips are in high quality. We only focus on high quality.
3.Color Rendering Index: DeRun use at least Ra80 led chips to do our led strip lights. When we test by the integrating sphere machine, it usually shows Ra83 for most of our led chips. We also use many Ra90 and Ra95 led chips for special projects. We can offer the test report for each batch of our led strip light.
4.Uniformity: DeRun always keep the same bin color temperature for all our led strip lights. It’s very important to our customers.
5.Waterproof Rating: We not only can offer traditional IP65, IP67, IP68 waterproof process, but also new silicone extrusion process for IP67, IP68 and silicone neon technique in dotless frosted encapsulations. Most of our waterproof mold are private mode.
6.Engineer Team: DeRun have our own engineer team. Whatever flexible strip pcb or rigid strip pcb, our engieer team can draw greber file for customers in the first time. We welcome all OEM and ODM orders from all over the world.
7.Service: Most of DeRun led strips are CE, ROHS, cUL and UL listed. UL NO: E482640. We warranty 3-5 years. Welcome to visit our factory, or contact us: info@derunledlights.com
